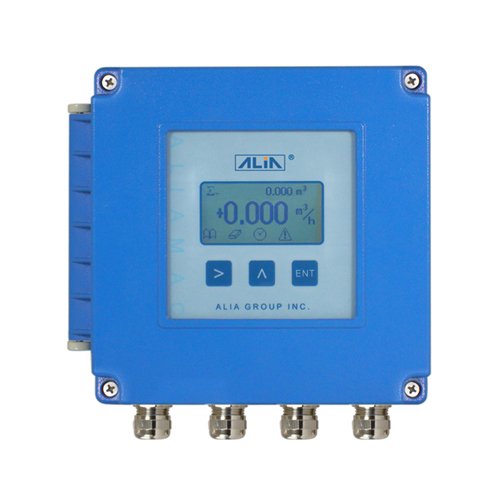

The Aliamag AMC2100 series converter is a microprocessor based intelligent transmitter that can be paired with any of the Alia AMF series sensors. The unit features multiple display parameters including flow rate, flow total, diagnostics, programming and troubleshooting.
FEATURES
- Three line LCD display Flow Rate / Totalizer
- Accuracy of +/-0.4% value of reading
- Bi-directional flow measurement, current and pulse output
- Large digital display
- Records up to 99 power on/off time
- MODBUS/HART communication
SPECIFICATION
| Excitation: |
| DC pulsed |
| Display: |
| 3 lines LCD with illumination |
| Line 1 |
| 11 digit totalizer for forward flow 11 digit totalizer for reverse flow 11 digit totalizer for difference |
| Line 2 |
| 5 digit flowrate / velocity / % / mA / HZ |
| Line 3 |
| Parameter / Query / Clr tot / Query LOG Alarm, Guidance |
| Unit |
| M3/H, L/H, Kg/H, T/H, L/min, M3/min, GPH GPM, ML/H, ML/m, ML/sec |
| Measuring Range: |
| Min. 0 to 0.15 m/s Max. 0 to 15 m/s |
| Accuracy: |
| +/-0.4% read-out values (Velocity >=0.5 m/s) +/-0.002 m/s (Velocity < 0.5 m/s) |
| Repeatability: |
| +/-0.1% read-out values |
| Current Output: |
| 4-20 mA (Isolated) |
| Load |
Max. 600  |
| Pulse output: |
| Open collector |
| Rating |
| 3 to 30 VDC, 20 mA Max. |
| Pulse Rate: |
| 1) Scale pulse (Pusle/M3, Pulse/L, Other) 2) Frequency: 0-5000 Hz |
| Pulse Width: |
| 50% of band width |
| Alarm: |
| High/Low with open collector output |
| Rating |
| 3 to 30 VDC, 20 mA Max. |
| Communication: |
| RS 485 (MODBUS Protocol) HART signal (Compatible) |
| Data Storage: |
| Operation parameters and totalizer figures are stored by EEPROM for more than 10 years |
| Keyboard: |
| 3 external keys for programming and display control |
| Low Flow Cutoff: |
| 0 to 9.9 % |
| Data logger Function: |
| 99 times flowrate records for power on/off |
| Record Data: |
| Date/Time when Power on/off Flow rate when Power on/off Totalizer when Power on/off |
| Damping: |
| 0 to 99 Seconds |
| Density Setting: |
| 0.1 to 9.99 g/cm3 |
| Self Diagnosis: |
| The following error message are displayed if failure occurs – Coil failure – Power failure – Overranged output – Internal error – Overflow – Empty pipe |
| Cable Entry: |
| Standard :PG11 Option:1/2″NPTF |
| Protection Class: |
| IP 65 |
| Ambient Temperature: |
| -25 to +65 oC |
| Material: |
| Aluminum Alloy |
| Power Supply: |
| 90-260 VAC, 50/60 Hz 24VDC +/-10% (Option) |
| Power Consumption: |
| 3-17 W (Dependent on sensor size) |
| Weight: |
| 1.4 Kg |
| Mounting: |
| Wall mounting Bracket on 2″ pipe |
